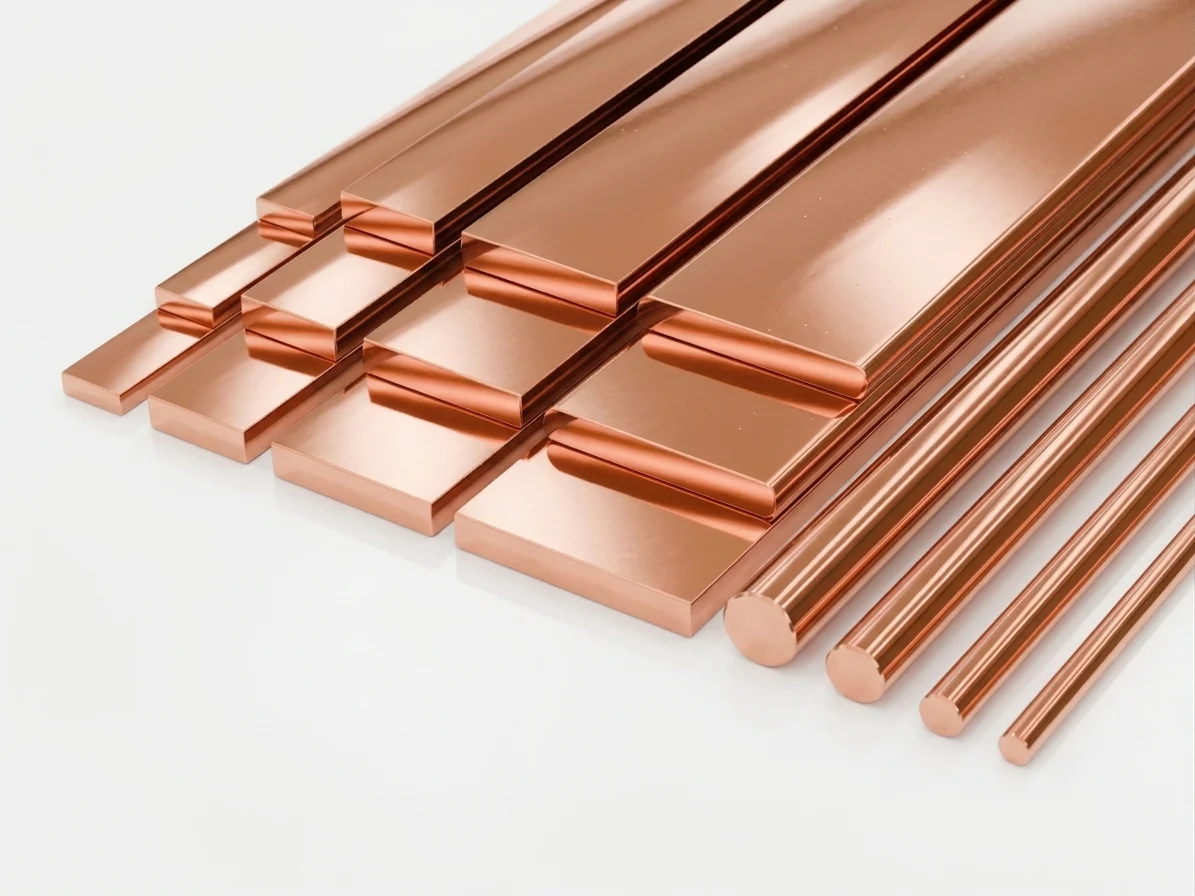

Copper Busbars and Rods
Electrolytic copper busbars and round rods for panel and busbar applications; EN 13601 compliant.
Copper busbar and rod are the carrying conductors of switchgear panels, distribution busbars, transformer connections and earthing systems. They are produced from Cu-ETP electrolytic copper by extrusion and cold drawing; they are delivered with rounded (radiused) or sharp edges.
For corrosion-prone environments and joints requiring low contact resistance, an electrolytic tin-plated busbar option is offered. All products can be shipped project-ready with cut-to-length, drilling and bending operations.
Copper Busbars and Rods Products
Technical Information
Key characteristics:
- Material: Cu-ETP (CW004A), hardness R240 / R290
- Busbar dimension range: 12×2 mm — 200×20 mm
- Rod diameter range: 5–100 mm
- Conductivity: ≥ 100% IACS
- Plating: electrolytic tin (3–8 µm), silver/nickel on request
- Reference standards: EN 13601, EN 13605
In busbar selection the section is determined not only by the current-carrying capacity but also by short-circuit heating, the support spacing and the number of joint points. Our technical team provides a quotation together with a section and coating recommendation according to your IEC 61439 panel specification.
